HD Customized Fixed Frame Projection Screen , Home Theatre Projection Screen Shrot Throw
Large Frame Screen is a customized product that is made-to-order for each customer. For the frame screen, a unique material is applied to the frame that is specially manufactured to ensure that the screen has no creases and high smoothness. It is used for single or multi-projector displays.
Using rigid or flexible screens we can create multiple channel systems to give the possibility of the projectors use hard edge blending, but the images can be exactly positioned to leave only a hairline join.

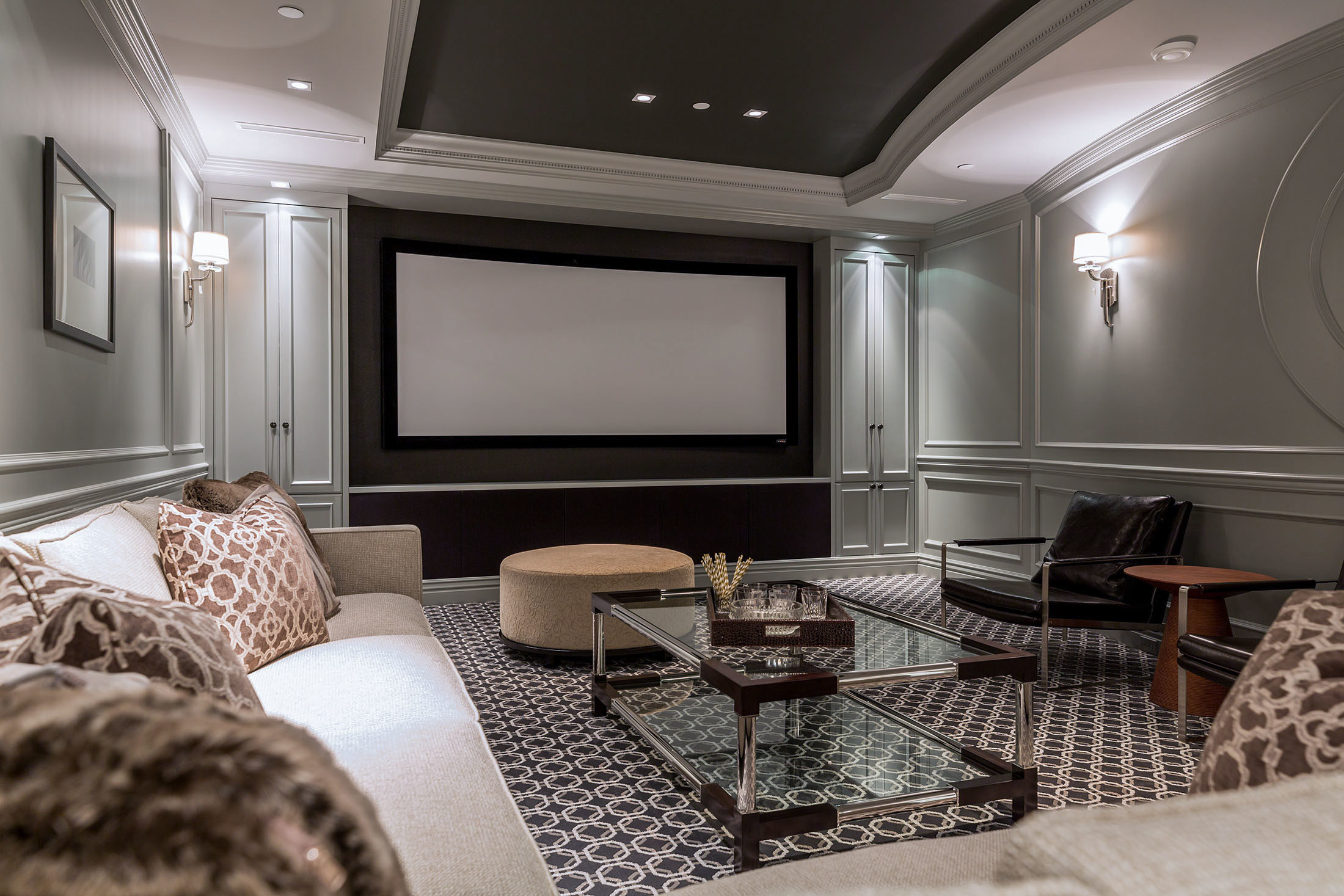

It is perfect for large halls and cinema room’s installations. The permanent frame means that the projection screen material is always perfectly flat. The screen can be optionally equipped with floor stands.
Features of Large Frame Screen
» Aluminum frame with black velvet borders to absorb over projected images
» Perfect flat screen surface
» Special angular connections, frames can be assembled
» Easy to attach screen fabric to the frame by spring system
» Ease of installation, mount to wall come with brackets
» Brackets hidden after screen installed
» Floor stands can be optional
» 8Cm,10Cm,15Cm width frame for choose
Screen Parameter(Custom Size is Available)
| Model No. | Size | Format | View Area | Length | Packing Size | Weight |
| Unit:mm | Unit:mm | Unit:cm |
| Inch | (W) | (H) | (W) | (H) | cm | Kgs |
| FFV84 | 84 | 4:3 | 1710 | 1280 | 1910 | 1480 | 207X21X16 | 19.00 |
| FFV92 | 92 | 1870 | 1400 | 2070 | 1600 | 222X21X16 | 21.00 |
| FFV100 | 100 | 2030 | 1520 | 2230 | 1720 | 239X21X16 | 22.00 |
| FFV120 | 120 | 2440 | 1830 | 2640 | 2030 | 280X21X16 | 26.00 |
| FFV150 | 150 | 3050 | 2290 | 3250 | 2490 | 337X21X16 | 30.00 |
| FFV180 | 180 | 3660 | 2750 | 3860 | 2950 | 398X21X16 | 35.00 |
| FFV200 | 200 | 4060 | 3050 | 4260 | 3250 | 438X21X16 | 42.00 |
| FFH84 | 84 | 16:9 | 1860 | 1050 | 2060 | 1250 | 228X21X16 | 19.00 |
| FFH92 | 92 | 2040 | 1150 | 2240 | 1350 | 246X21X16 | 21.00 |
| FFH100 | 100 | 2210 | 1240 | 2410 | 1440 | 264X21X16 | 23.00 |
| FFH106 | 106 | 2350 | 1320 | 2550 | 1520 | 278X21X16 | 24.00 |
| FFH120 | 120 | 2660 | 1500 | 2860 | 1700 | 308X21X16 | 27.00 |
| FFH133 | 133 | 2950 | 1660 | 3150 | 1860 | 327X21X16 | 29.00 |
| FFH135 | 135 | 2990 | 1680 | 3190 | 1880 | 331x21x16 | 31.00 |
| FFH150 | 150 | 3320 | 1870 | 3520 | 2070 | 364x21x16 | 32.00 |
| FFH180 | 180 | 3990 | 2240 | 4190 | 2440 | 431x21x16 | 37.00 |
| FFH200 | 200 | 4430 | 2490 | 4630 | 2690 | 475x21x16 | 45.00 |
| FFW100 | 100 | 2.35:1 | 2340 | 1000 | 2540 | 1200 | 274x21x16 | 23.00 |
| FFW106 | 106 | 2480 | 1060 | 2680 | 1260 | 291x21x16 | 26.00 |
| FFW120 | 120 | 2810 | 1200 | 3010 | 1400 | 324x21x16 | 28.00 |
| FFW133 | 133 | 3110 | 1320 | 3310 | 1520 | 343x21x16 | 30.00 |
| FFW135 | 135 | 3160 | 1350 | 3360 | 1550 | 348x21x16 | 32.00 |
| FFW150 | 150 | 3510 | 1490 | 3710 | 1690 | 383x21x16 | 35.00 |
Size and specifications are subject to the actual product size, will be changed without notice
Applications
» Theatre or Cinema
» Top Grade Chamber, Hotel
» Boardroom Presentations
» Government public Projects
» Single or multi-projector displays
Fabrics are available on our Large Frame Screen
» Flexible White Fabric
» Flexible Rear Fabric
» Flexible Silver Fabric
» Flexible Mico-perforated
» Hard Metallic Silver
